N1 4-Bay Microserver Kit

N1 4-Bay Microserver Kit

£119.00 GBP
£119.00 GBP
Sale Sold out
Taxes included.
Colour: Space Black
Optional 10" Mini Rack Mounting Kit (2U)

The most performant and power-efficient 4-bay microserver in its size class, N1 is a microserver kit for those who need on-the-go computing and services.

Use N1 as a...

  • NAS with up to 32TB of storage (e.g. TrueNAS)
  • Plex/Jellyfin Media Server
  • Home Automation Platform with Home Assistant
  • Local AI host with Ollama and Docker
  • Hypervisor with Proxmox, ESXi, and more
  • Windows Server
  • Personal (WiFi) Router with OPNsense, OpenWRT, and more

...and so much more.

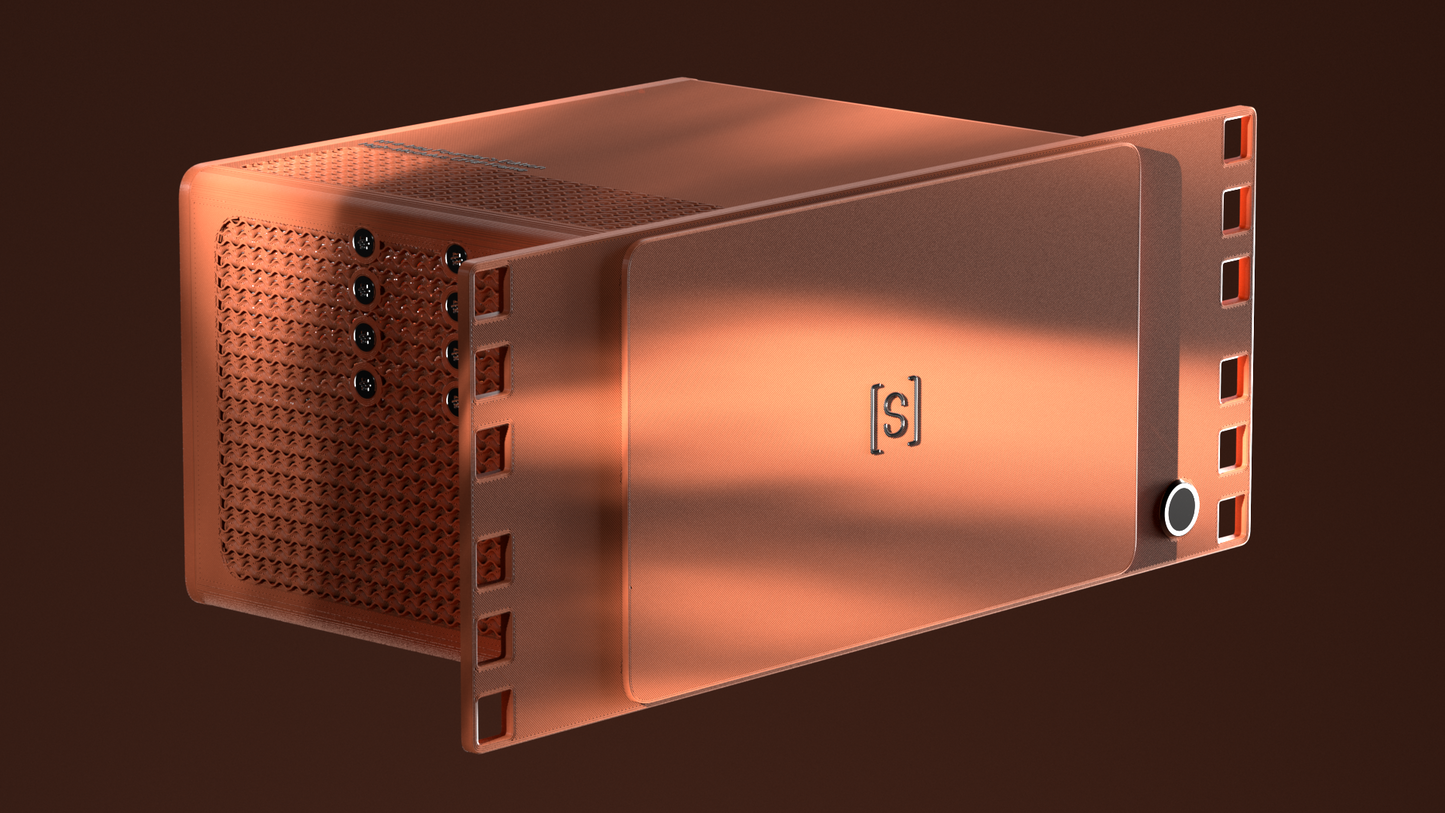

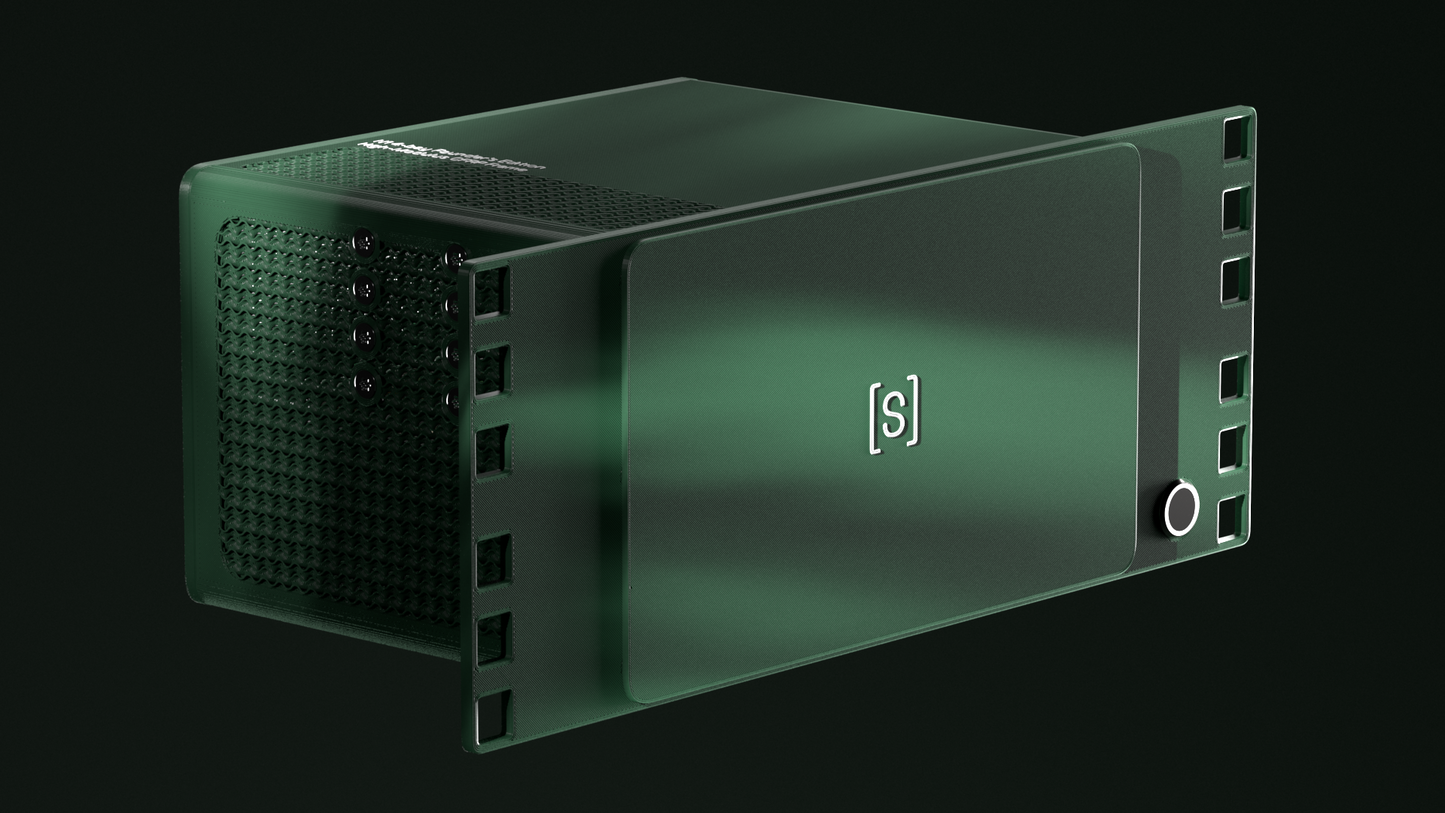

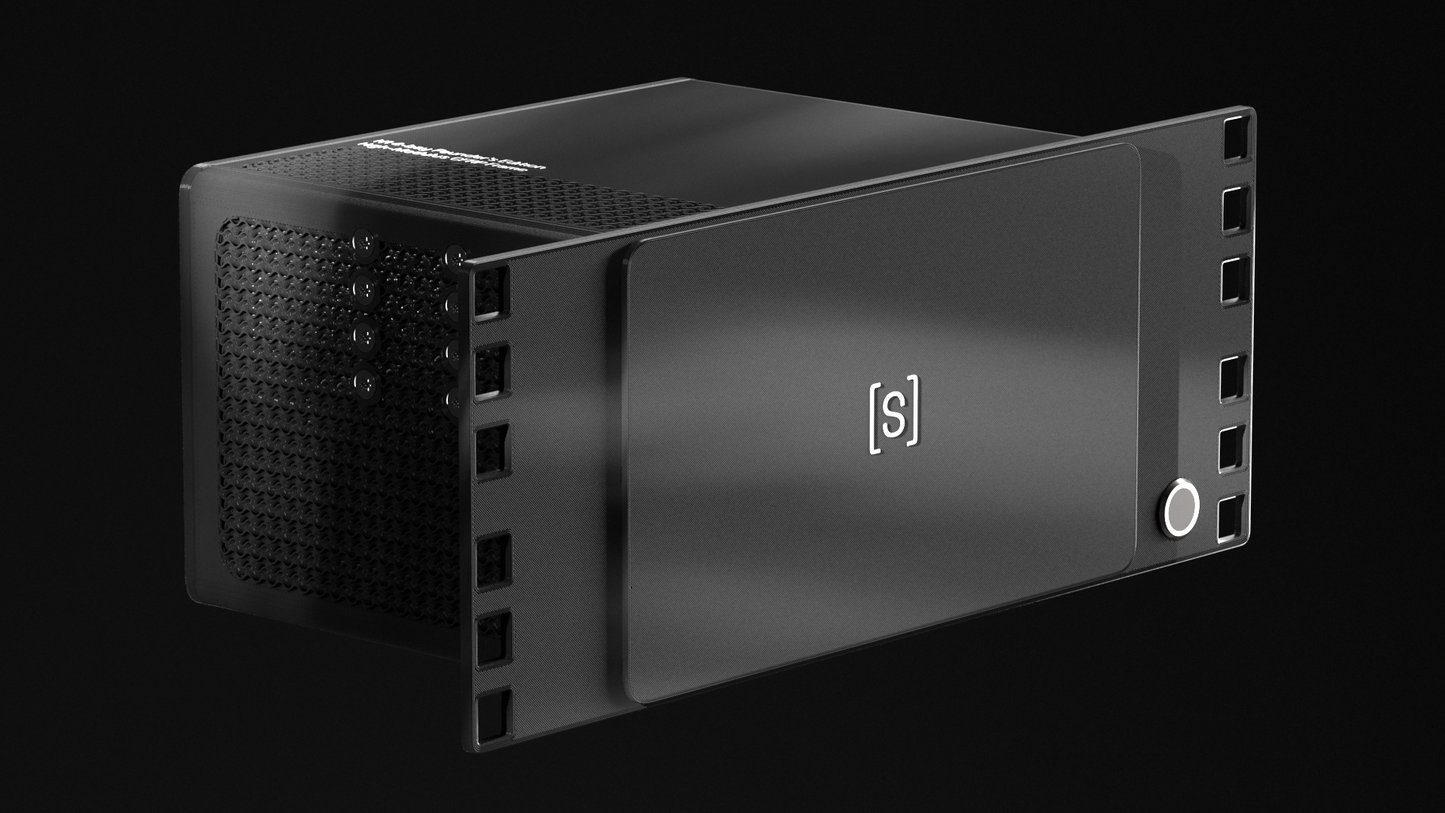

An optional rack mount kit is available, allowing you to mount N1 in a 10-inch 'mini rack'. In this configuration, N1 takes up 2U of rack space.

N1 4-Bay is made-to-order, so please expect 3-5 business days between your order and its dispatch. For order customisation, add a note when checking out and we will be in touch to clarify options and details.
View full details

Your homelab, anywhere.

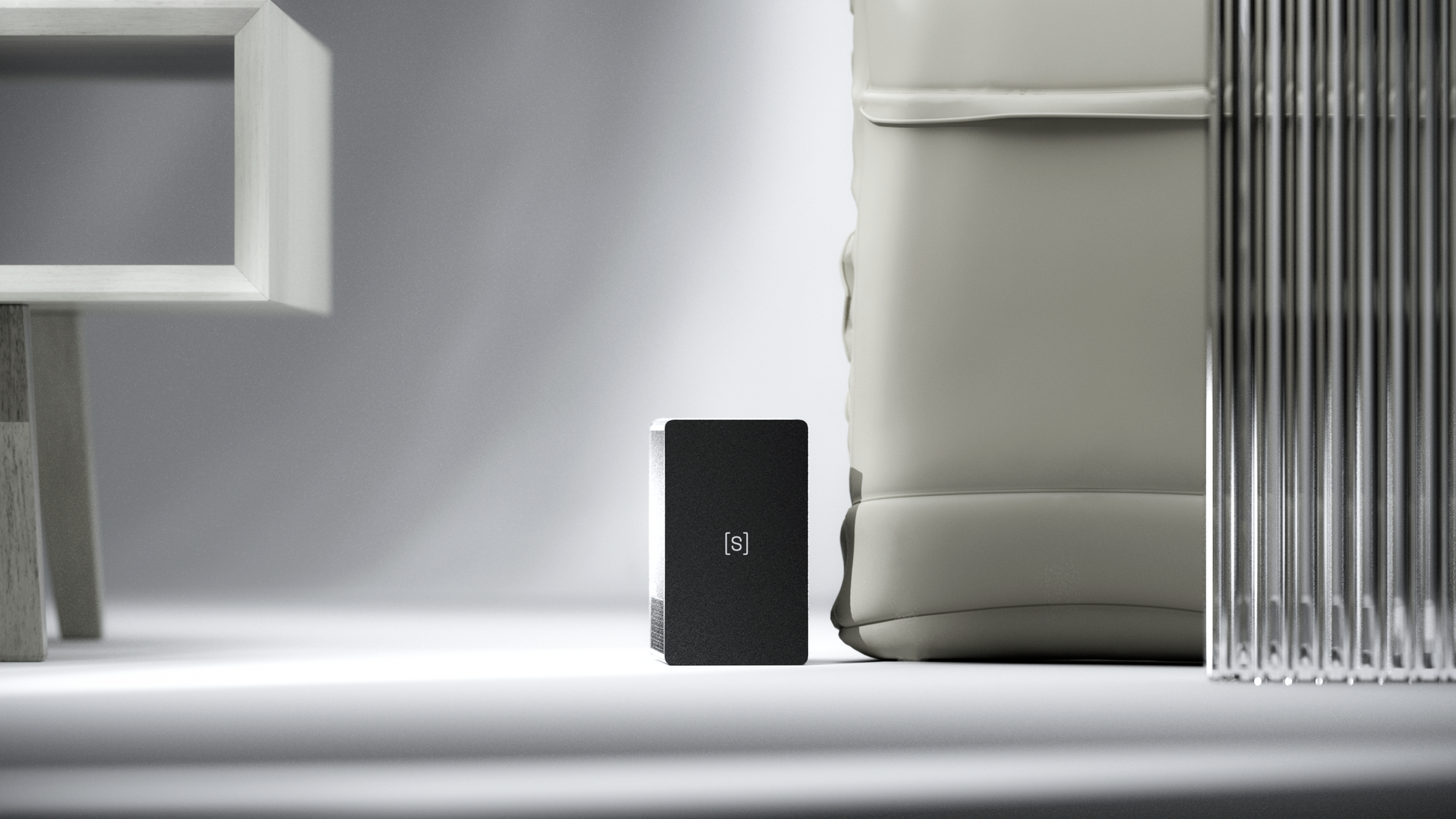

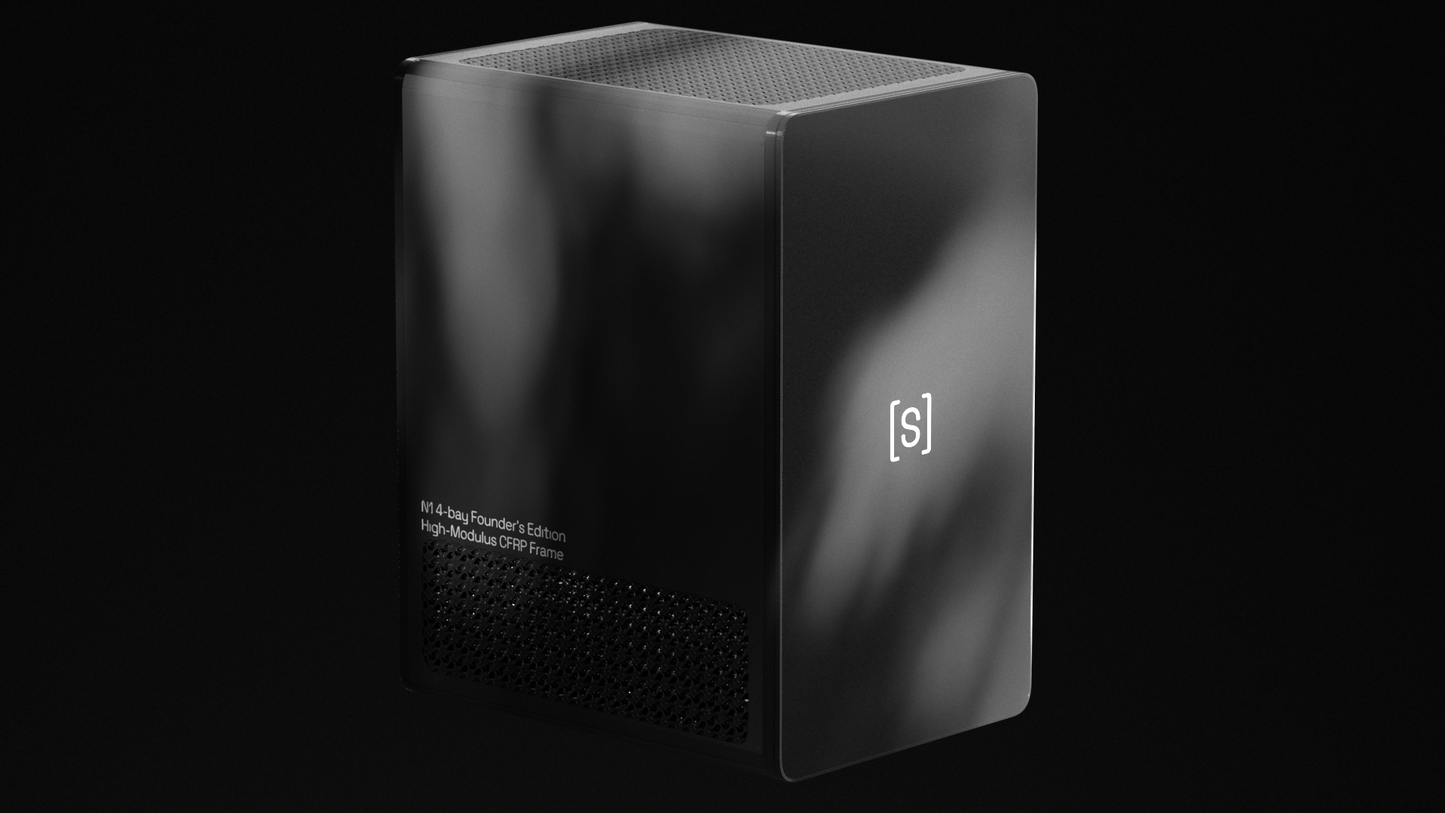

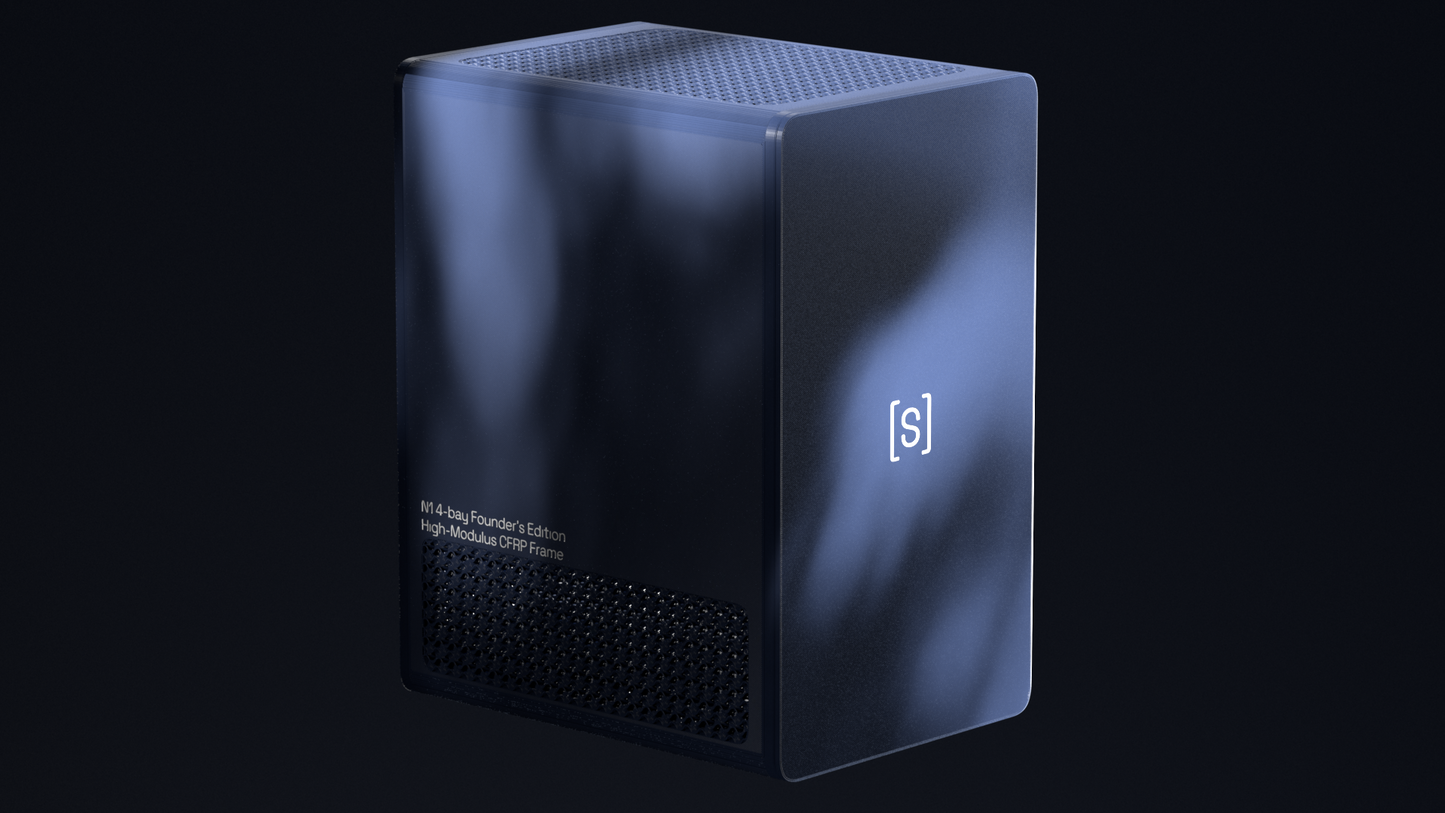

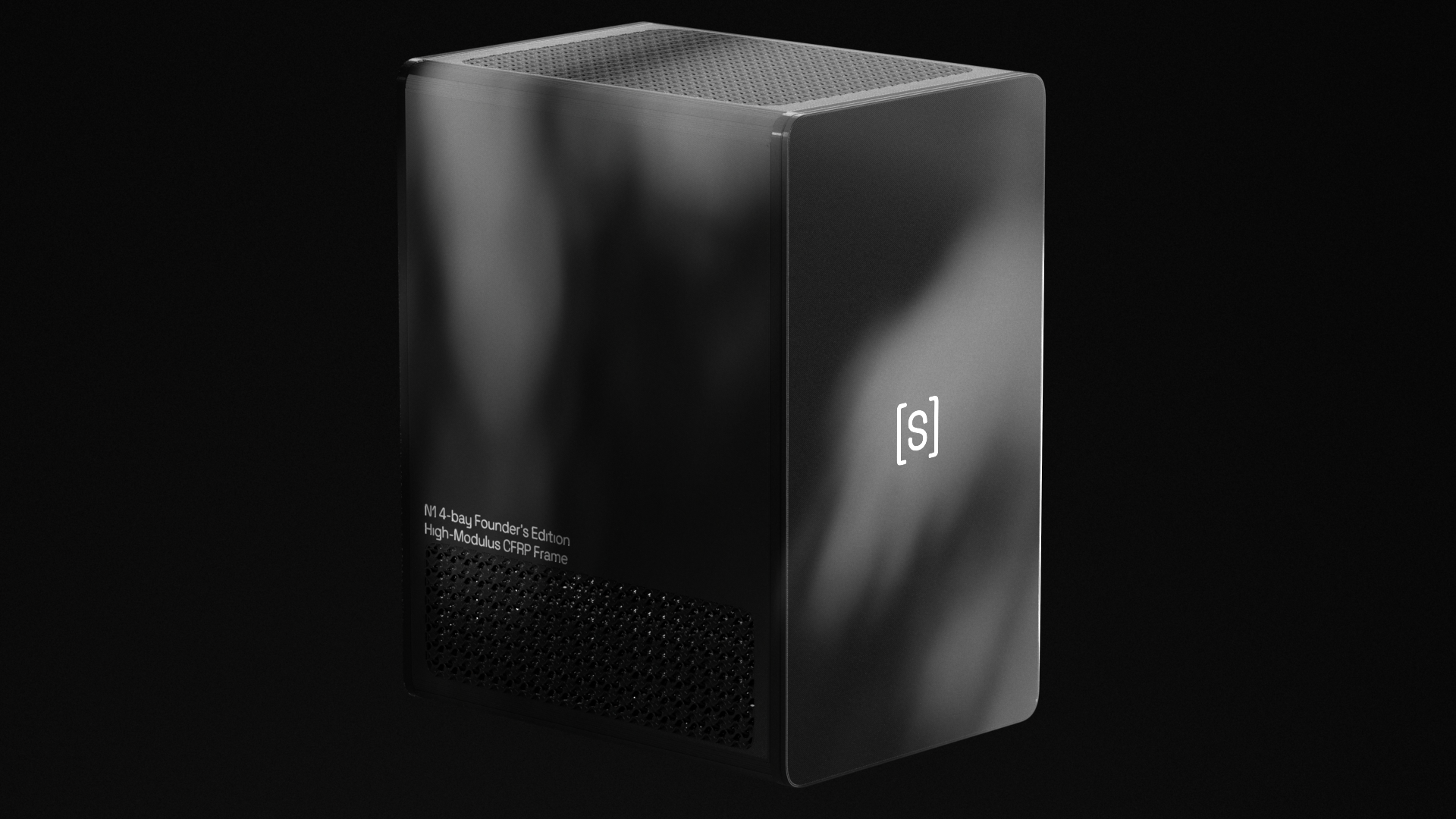

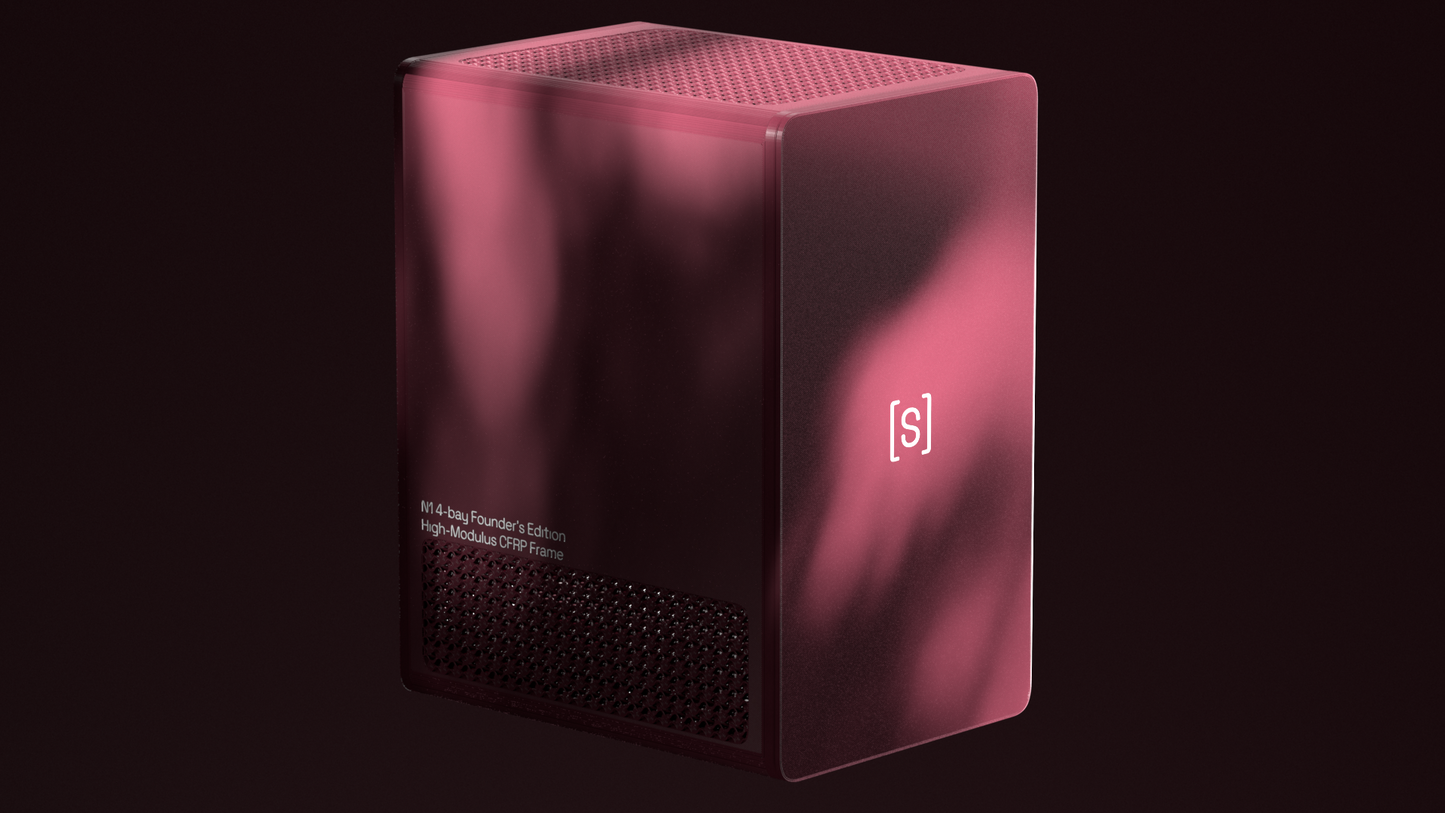

STRXCT N1 4-bay is a high-performance, 2.0L microserver/NAS kit.

Take your server with you while you're travelling in the outback, moving to a dorm with slow WiFi, or conducting sales meetings across the country.

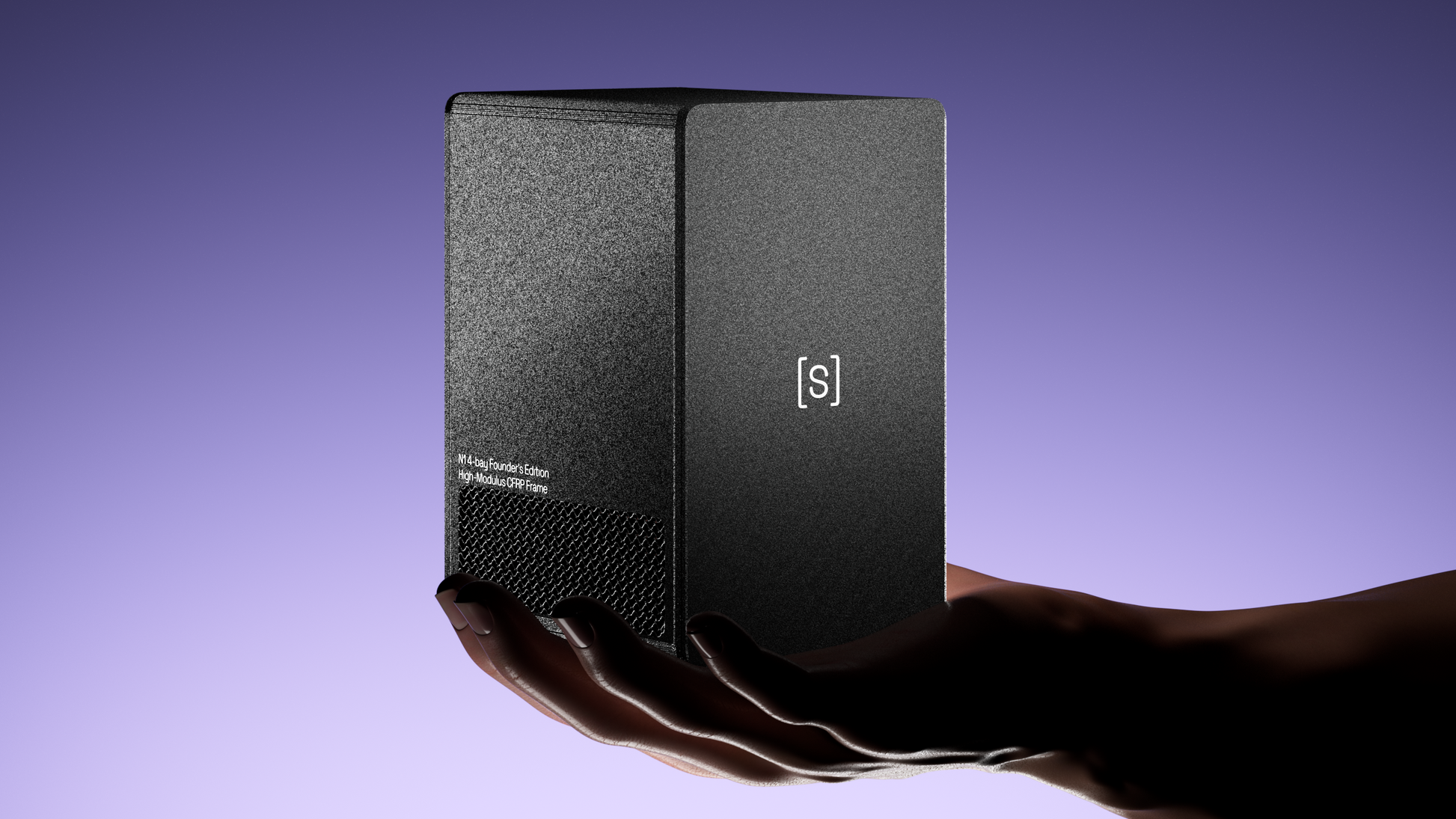

N1 is your lunchbox-sized server buddy as you stay on-the-go!

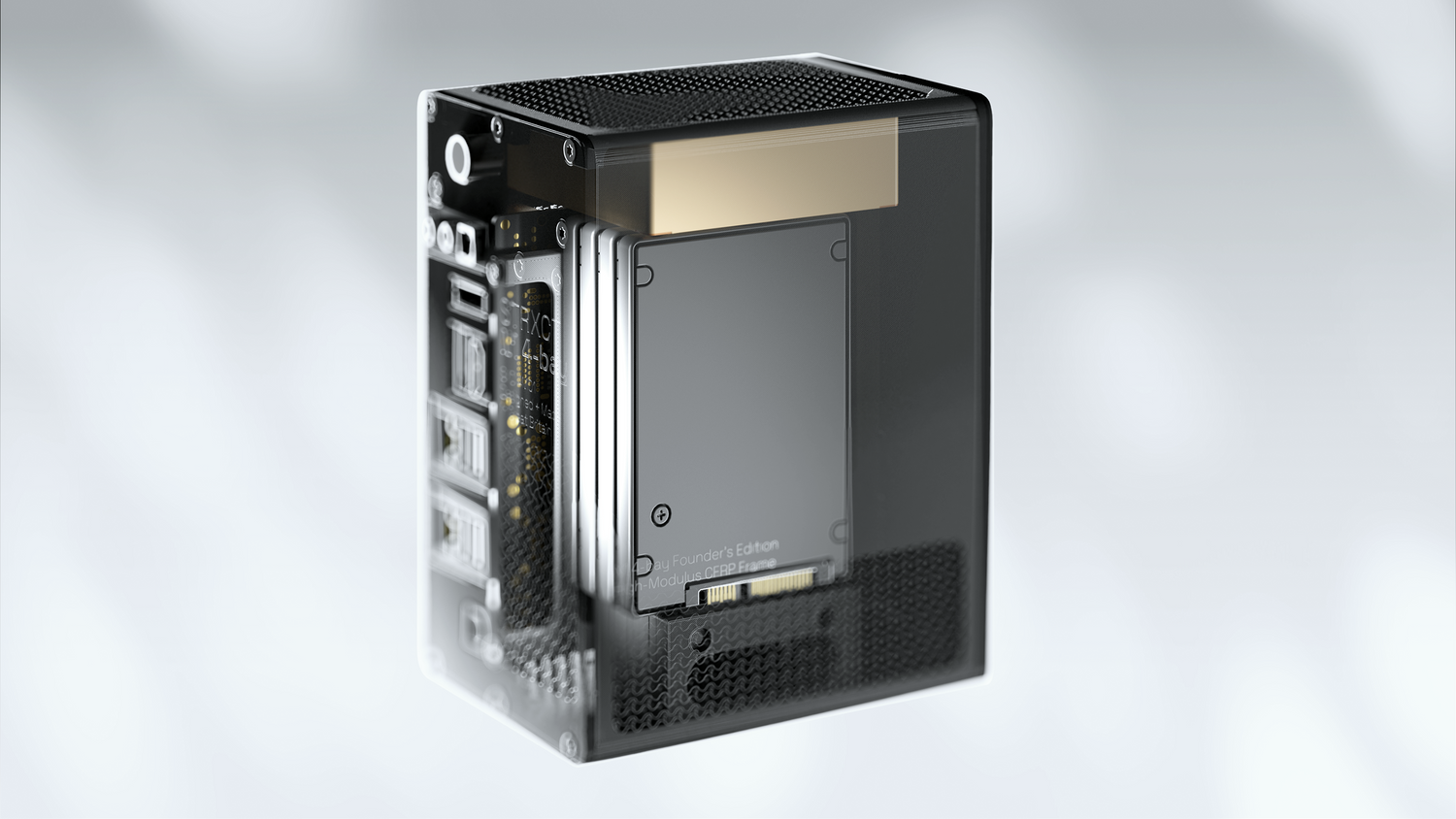

Up to 4 Drives

Fill your N1 with up to 4 × 2.5" SATA III drives.

Using 8TB SSDs, that's up to 32TB of speedy, robust flash storage in the palm of your hand!

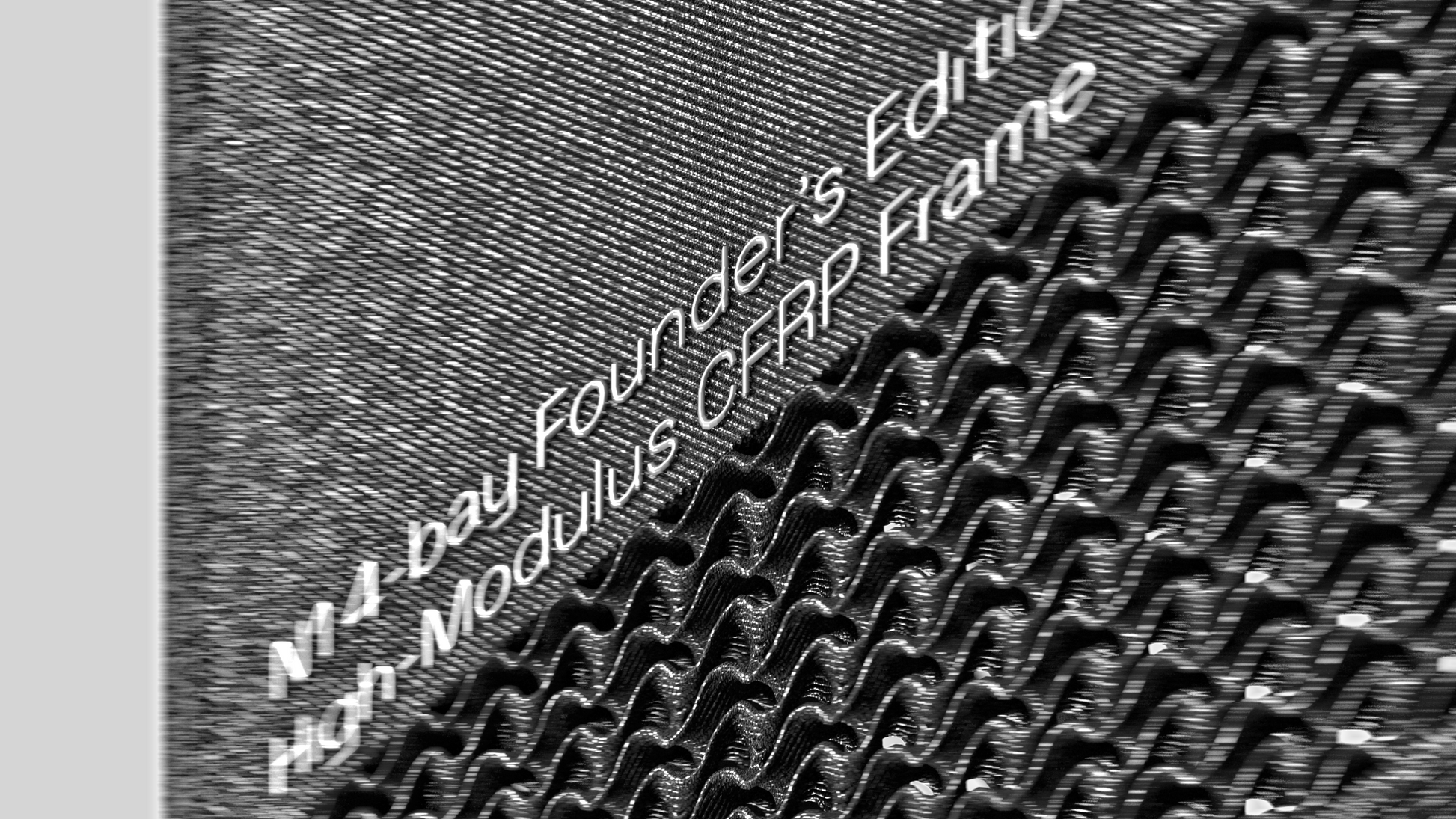

High-Modulus Carbon Fibre Composite Construction

All panels and braces are made from a tough, carbon fibre polymer composite using additive manufacturing technology.

The use of additive manufacturing also means STRXCT N1 can be totally customised for your order.

Custom orders are subject to an extra engineering fee.

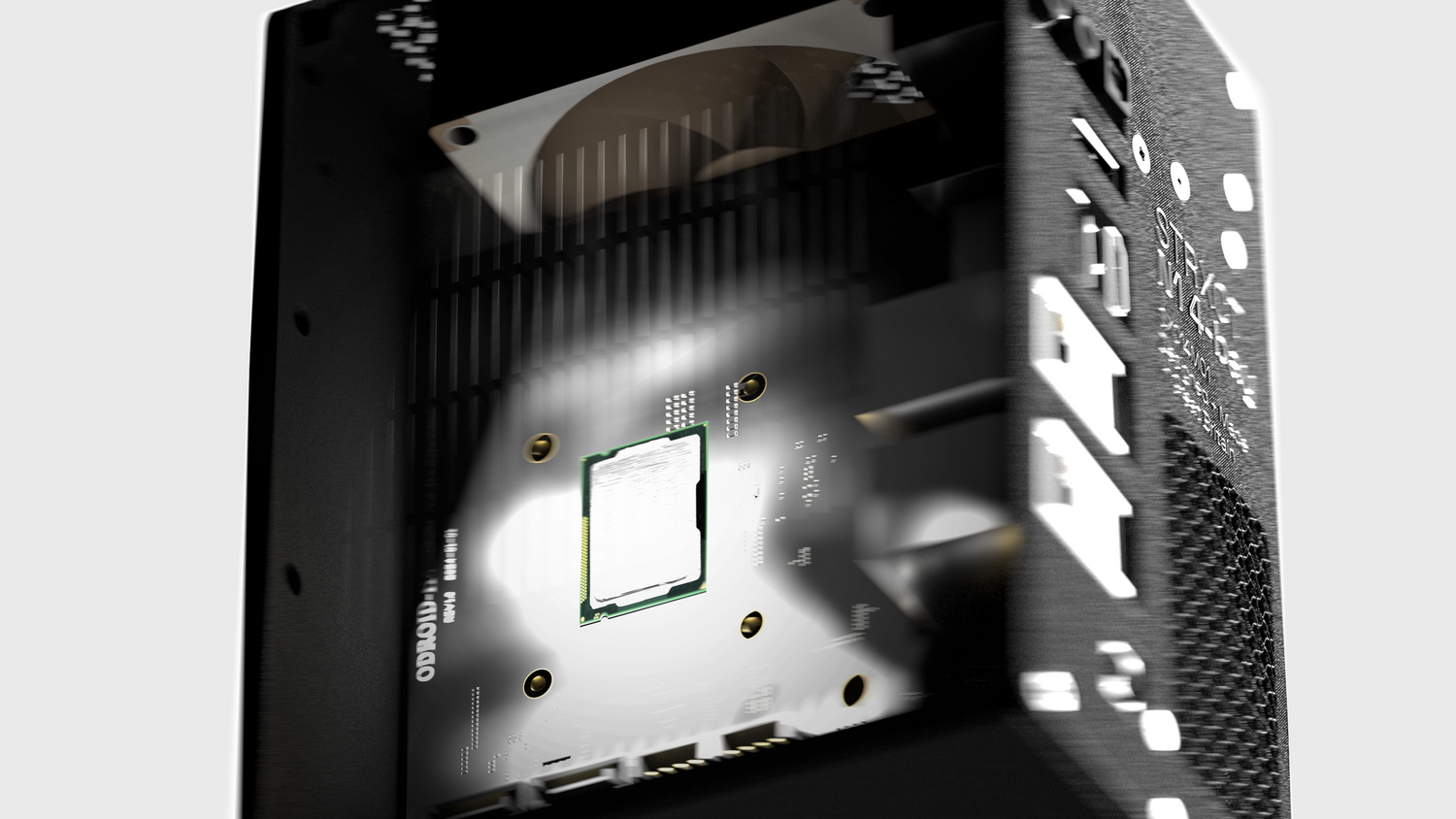

Performant yet Power-Sipping

Spec an Intel® Core™ i3-N97 or -N305 for best-in-class performance-per-watt.

Up to 8 'E-cores' means STRXCT N1 has enough muscle to host a NAS instance, VMs, and containers such as Home Assistant, Plex, or Nextcloud - ideal for home or small business needs!

Compute, Don't Compromise.

In contrast to other ARM-based alternatives, STRXCT N1 is designed around Intel® x86 CPUs that all your favourite server operating systems are built for. Pair that with up to 48GB DDR5 RAM for performance that cannot be beaten at this size and price.

For connectivity, N1 features 2 × 2.5-Gigabit Ethernet and 3 × 4K display outputs and more. Using SMB multichannel or LAGG, this means you can transfer files at up to 5 Gb/s!

In short, you won't find a better-performing server at this size and price!

Easy on the pocket and the planet.

N1 is made from a single uniform material with fasteners and inserts made from one material respectively. This means it can be easily recycled in most locales.

N1 is packaged entirely in paper pulp and cardboard, too, for simple recycling.

No single-use plastics here!

The Technical Stuff

Populate N1 with up to:

Storage
  • 4 × 2.5" SSD/HDDs (up to 9.5mm thick)
  • 1 × 2280 NVMe SSD (PCIe 3.0 x4)
  • 1 × eMMC module (available from Hardkernel)
Memory
  • 1 × DDR5 SODIMM 1.1V up to 48GB

Tech specs

External Volume 2.01 litres

Motherboard
  • Nano-ITX Odroid H4 Family Board (must be purchased separately)
CPU
  • Intel® Core™ i3-N97 or Intel® Core™ i3-N305
Graphics
  • Intel® UHD Graphics

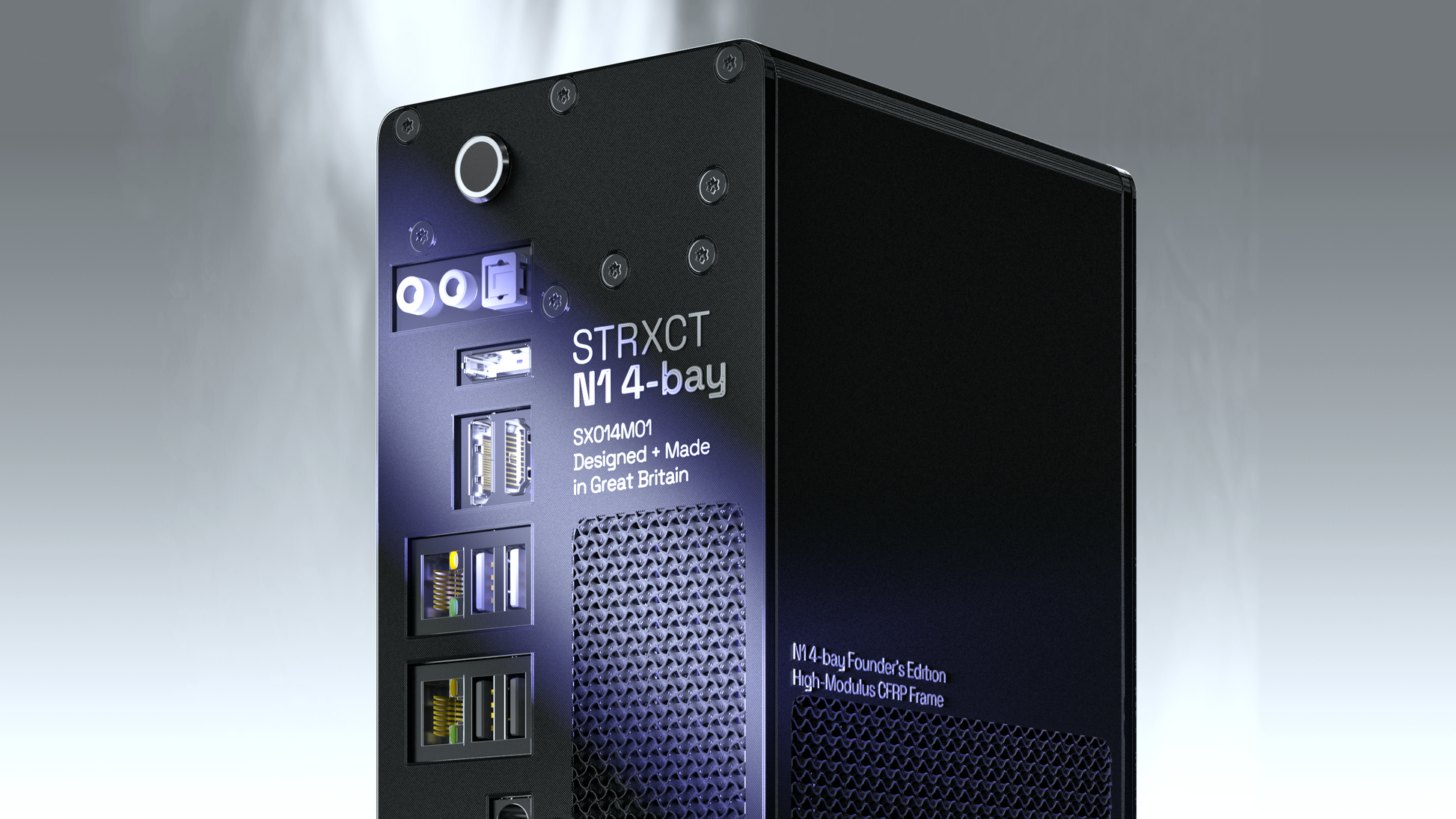

Connectivity
  • 2 × 2.5 Gigabit Ethernet powered by Intel® Ethernet Controller I226-V
  • 2 × DisplayPort 1.2 Video Out
  • 1 × HDMI 2.0 Video Out
  • 2 × USB 3.0 Type A
  • 2 × USB 2.0 Type A
  • 2 × 3.5mm Jacks (Headphone and Microphone)
  • 1 × S/PDIF Optical Out
  • I2C and UART via GPIO header
Dimensions and Weight
  • To be measured

What's included in the kit?

This is a self-assembly kit. In the box, you'll receive:

  • CFRP panels and brackets which make up the case
  • All necessary screws and fasteners
  • 4 × SATA III data and power combo cables
  • 1 × 12mm LED power button
  • 1 × Noctua NF-A8 cooling fan
  • 1 × Torx screwdriver for assembly
  • Testing report and support documentation
  • CFRP 10" rack-compatible front panel, ventilated bottom panel, and landscape-orientation magnetic front fascia panel (optional rack-mount kit only)
  • Rack-mount screws and nuts (optional rack-mount kit only)
NF-A8 comes in original Noctua packaging inside the STRXCT box.

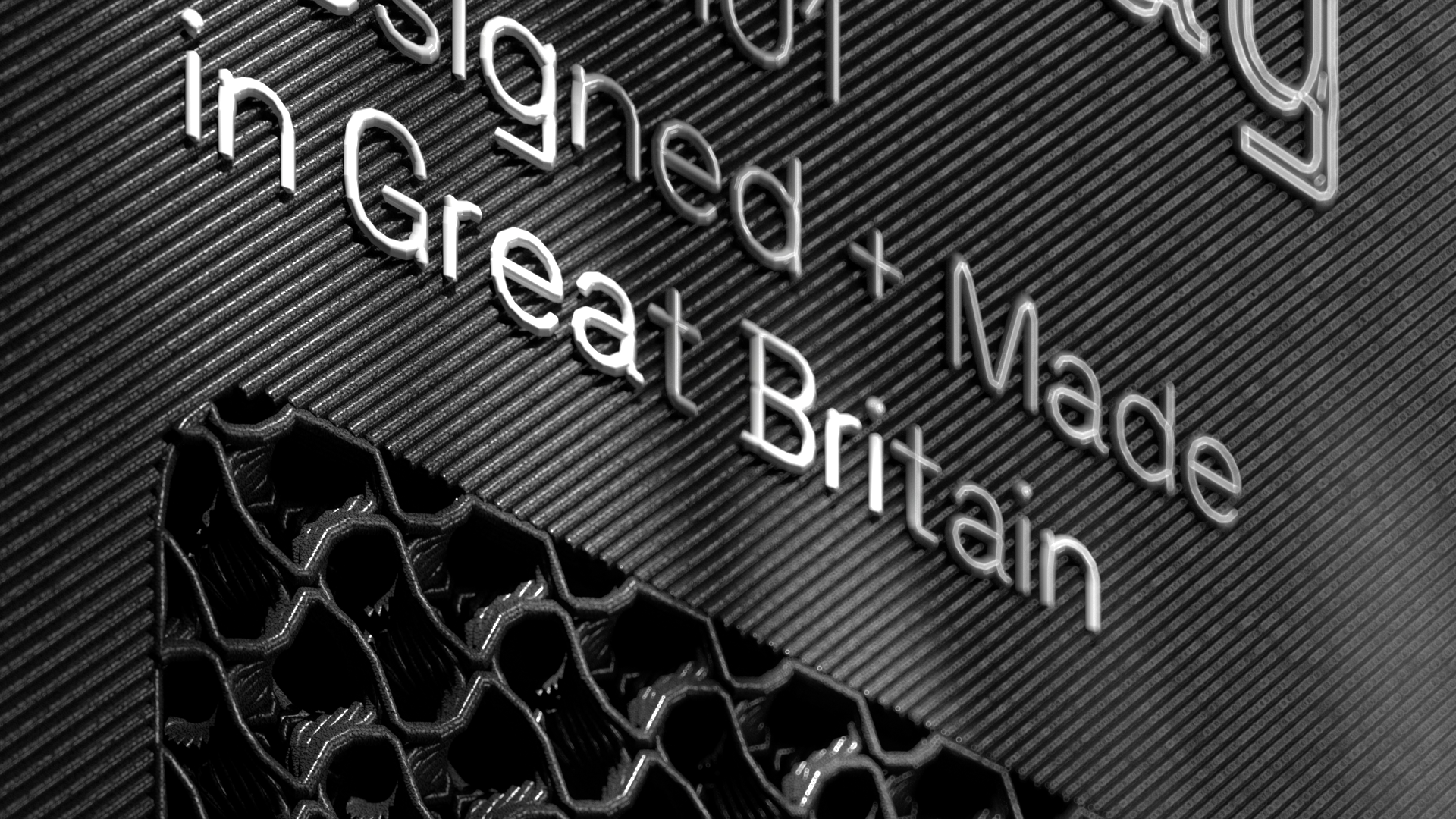

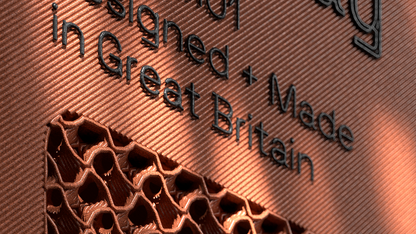

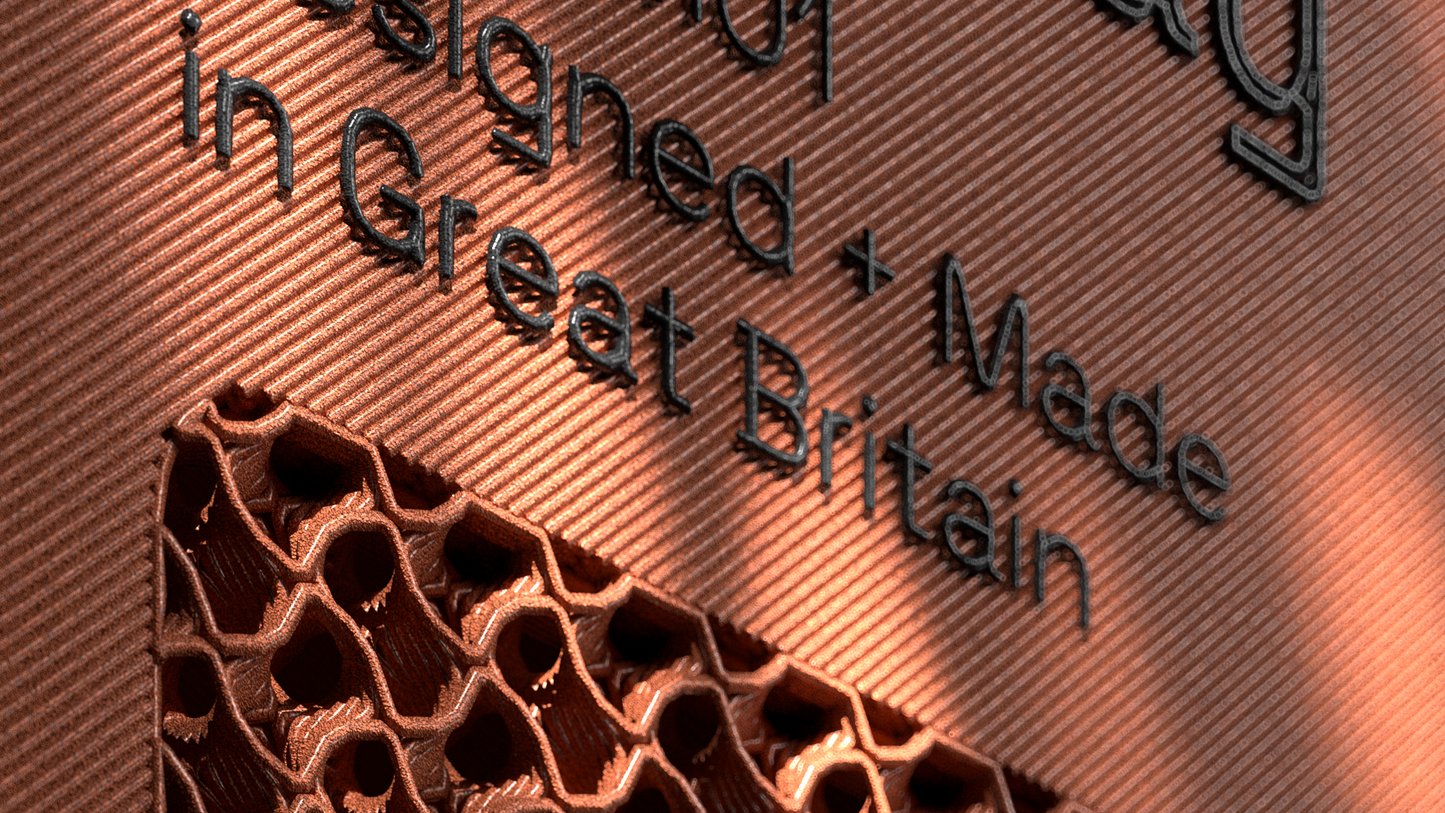

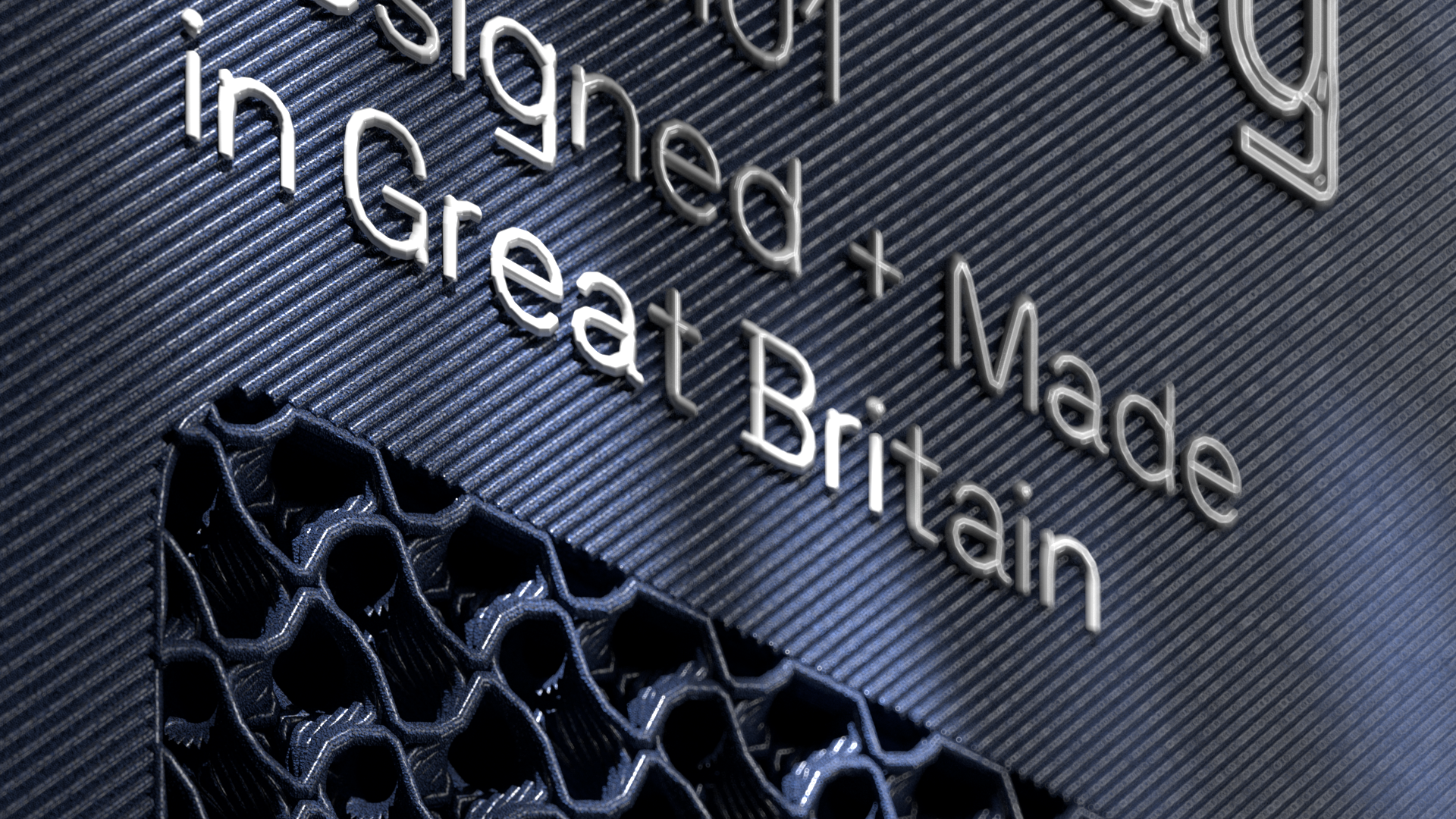

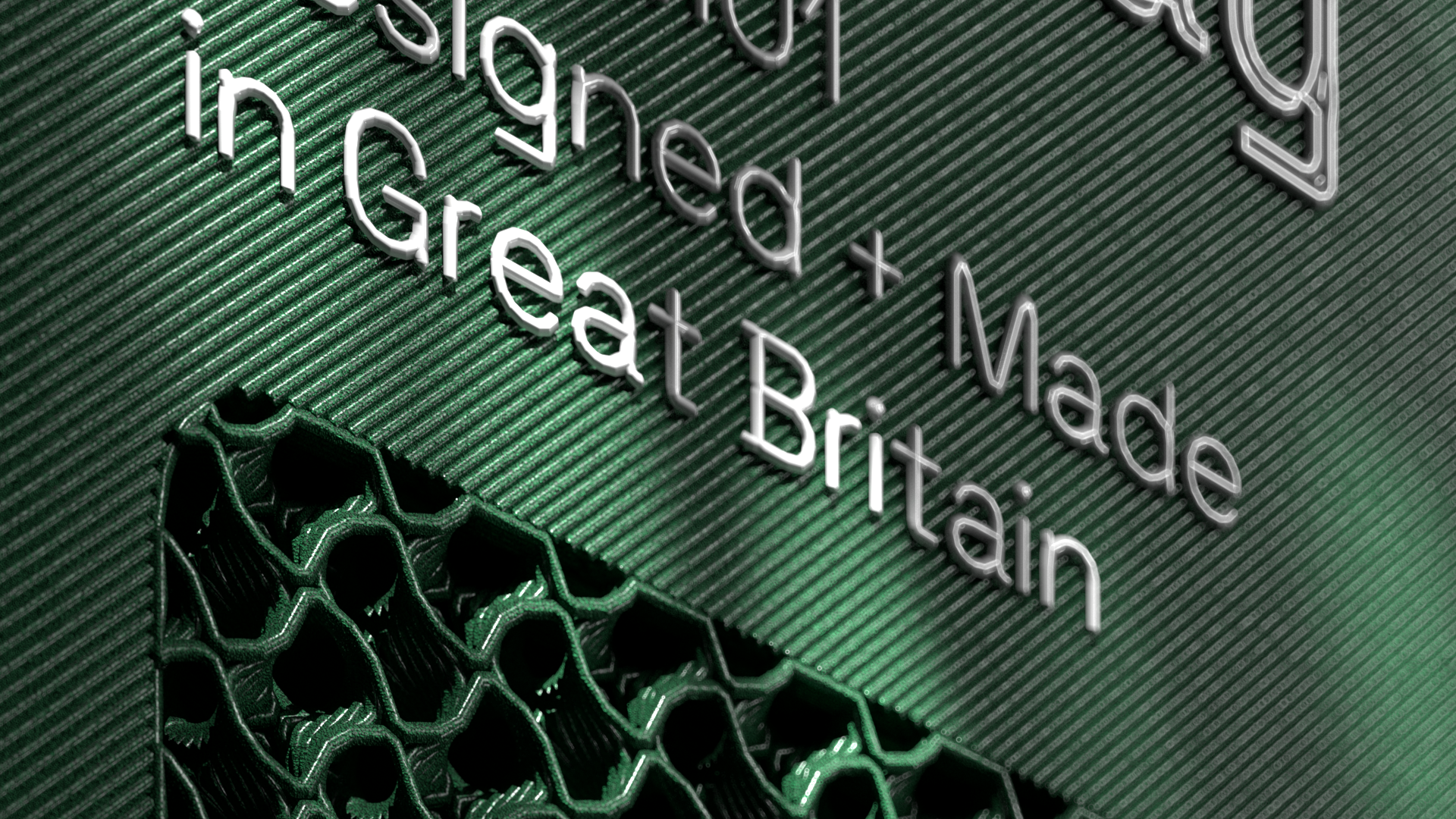

N1 is designed and made in Great Britain.

Please Note

For regulatory purposes, this kit does not include the Odroid H4 family motherboard or power supply. You will need to purchase these separately in your locale. To make full use of the 4 drive bays, you will need an Odroid H4+ or H4 Ultra. Links for purchase are provided below. You will need to supply your own RAM and optional eMMC, which you can buy when purchasing your Odroid. You do not need to buy SATA cables separately as these are provided in the STRXCT N1 4-Bay kit.

While the Odroid H4 is FCC and CE certified, we are exploring options for getting our own FCC/CE/UKCA certification so we can sell the whole package one box. Thank you for your support while we figure this out.

Buy Odroid H4+/H4U in your locale

Odroid H4+ UK and Europe

Odroid H4 Ultra UK and Europe

Odroid H4+ rest of world

Odroid H4 Ultra rest of world
